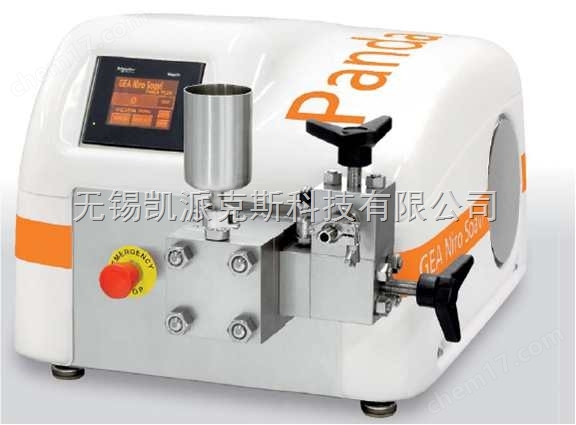

Panda PLUS 2000 實驗室用高壓均質機
| 參考價 | ￥ 300000 |
| 訂貨量 | ≥1 |
- 公司名稱 無錫凱派克斯科技有限公司
- 品牌
- 型號 Panda PLUS 2000
- 產地 意大利
- 廠商性質 經銷商
- 更新時間 2017/12/28 10:08:37
- 訪問次數 1834
聯系我們時請說明是化工儀器網上看到的信息，謝謝!
Product fat emulsion
產品 脂肪乳
Viscosity Up to 2000 cPs
粘度 zui大到2000cps
Maximum Particle Size Up to 0.2 mm in infeed
產品zui大顆粒 zui大為 微米
Operating Temperature < 90 °C
工作溫度 < 90 °C
Machine type LABORATORY
機器類型 實驗室用
Capacity 9 l/h
能力 9升/小時
Homogenizing Stage TWO homogenizing stage
均質級數 二級
Maximum Working Pressure 2000 bar
zui大工作壓力 2000巴
Max Back Pressure 5 bar
zui大背壓 5巴
Min in Feed Pressure Range bar （funnel feed）
進料壓力 料斗
Motor 1.85 Kw
電機功率 1.85Kw
Electrical Supply 3ph/380V/50Hz
電源 3ph/380V/50Hz
Cleaning Temperature <90°C
清洗溫度 <90°C
Cleaning Time 30 min
清洗時間 30 min
Sterilization Temperature 140°C
殺菌溫度 140°C
Sterilization Time 30 min
殺菌溫度 30 min
Local Conditions Temperature +5 / +40 °C - R.H. max 90% - Height above sea level:
環境條件 1000m
溫度+5 / +40 °C ；濕度zui大90% -；海拔高度1000米
The machine, manufactured according to the directive 98/37/CEE and following updates, includes:
本機器是安裝歐洲機械制造標準directive 98/37/CEE生產，包括下述部分：
- Compression Block construction monoblock in SAF2507
單體結構壓縮頭，材料為SAF2507
- Small volume stainless steel feeding hopper
不銹鋼進料斗
- Pump valves ball type in ceramic
陶瓷泵閥
- Pumping pistons in ceramic
陶瓷柱塞
- High efficiency RE+ design homogenizing valve inceramicwith handwheel adjustment of the pressure
高效RE+均質閥，材料為陶瓷；手輪調節均質壓力
- Lubrication system with grease
潤滑脂潤滑系統
- Transmission drive with AC motor
交流電機
- Stainless steel frame and ABS removable cover
不銹鋼框架和外罩
- Special heavy duty cast iron body housing transmission parts
傳動部分為特殊鑄件
ON-BOARD CONTROL PANEL
控制部分
- On-board 3,8” control panel with touch screen. It includes:
3.8寸觸摸式控制面版
- Continuous pressure indication （bar / psi）
連續壓力顯示（Bar/PSI）
- Overpressure safety setting
安全壓力設定
- Machine start / stop
開機/關機
- Alarms indications
報警顯示
- Real-time pressure trend diagram
時間與壓力曲線圖
- 4-20mA feedback pressure signal available for customer
4-20mA壓力信號輸出（如果用戶需要）
The supply also includes:
主機還包括
- Set of special tools.
一套專有工具
- O. and M. manuals.
操作手冊（光盤）
Opt. Description
包括 描述
PP01 2nd Stage homogenizing group with manual pressure adjuster by handwheel
included in standard scope ofsupply and installed in series with the 1st stage,
max pressure 150 bar. High efficinecy RE+ design inceramic
RE+高效二級均質閥，材料為陶瓷，手輪調節。
PP02 Tri-Clamp® inlet/outlet fittings
卡轂連接
PP03 Packing of machine
機器的包裝
XX01 Freight charges - CIF Major China Airport
空運至中國主要機
