REXROTH閥SEH系列介紹

概述

SEH型方向閥是帶有電液驅動的方向座閥。根據訂購版本的不同，可以通過一個或兩個通道進行切換或關閉。

方向閥基本上由外殼（1）、先導操作的單向閥安裝組件（2）、先導控制閥（3）以及用于先導油供應的封堵塞組成。該閥不受方向影響，具有自由流動性，并且根據先導控制閥的切換位置和主閥中的壓力比，以無泄漏的方式開啟或封閉。

功能

閥的功能依賴于壓力。壓縮彈簧（4）的力以及控制室（5）中由壓力產生的力作用于關閉方向，而通道A和B中由壓力產生的力作用于閥芯（6）的開啟方向，閥芯帶有密封。由開啟和關閉力產生的合力方向決定單向閥安裝組件（2）的切換位置。根據所選的先導油供應，先導壓力施加和/或卸載通過先導控制閥（3）實現。先導油供應通過通道A、B、P或X中的最高壓力實現，并通過單向閥（7）進行保護。

General

The SEH type directional valves are directional seat valves with electro-hydraulic actuation. Here, depending on the order version, it can be switched or switched off via one or two channels.

The directional valve basically consists of a housing (1), a pilot operated check valve installation set (2), pilot control valve (3) as well as blanking plugs for the pilot oil supply. The valve is free-flowing, independent from the direction, and is opened or blocked in a leakage-free manner depending on the switching position of the pilot control valve and the pressure ratio in the main valve.

Function

The function of the valve is pressure-dependent. The force of the compression spring (4) as well as the force generated by pressure in the control chamber (5) take effect in the closing direction, while the forces generated by pressure in the channels A and B take effect in the opening direction of the valve spool (6) with spool sealing. The direction of action of the resulting force from the opening and closing forces determines the switching position of the check valve installation sets (2). The pilot pressure application and/or unloading is implemented via the pilot control valve (3) depending on the selected pilot oil supply. The pilot oil supply is implemented via the respective highest pressure from the channels A, B, P or X and is secured via a check valve (7).

REXROTH閥其他常用型號：

REXROTH M-Z4SEH16E2X/3CG24PTK4/N

REXROTH M-Z4SEH10E2X/3CG24N9PTK4/N

REXROTH M-Z4SEH16E2X/3CG24N9XYK4/N

REXROTH M-Z4SEH10E2X/3CG24PTK4/F

REXROTH M-Z4SEH10E2X/3CG24PTK4/N

REXROTH M-Z4SEH10E2X/3CG24PYK4/F

REXROTH M-Z4SEH10E2X/3CG24PYK4/N

REXROTH M-Z4SEH10E2X/3CG96N9PYK4/F

REXROTH M-Z4SEH10E2X/3CG96PTK4/N

REXROTH M-Z4SEH10E2X/3CG96PYK4/N

REXROTH M-Z4SEH16E2X/3CG24PTK4/N

REXROTH OIL CONTROL Valve block NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向優良制造工業提供制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的*協作團隊，為客戶提供優良解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于REXROTH閥M-Z4SEH16E2X/3CG24PTK4/N的疑問，請隨時與我們溝通，我們將盡全力解決您的問題。

If you have any question for REXROTH OIL CONTROL products, Please feel free to communicate with us and we will do our best to solve your problem.

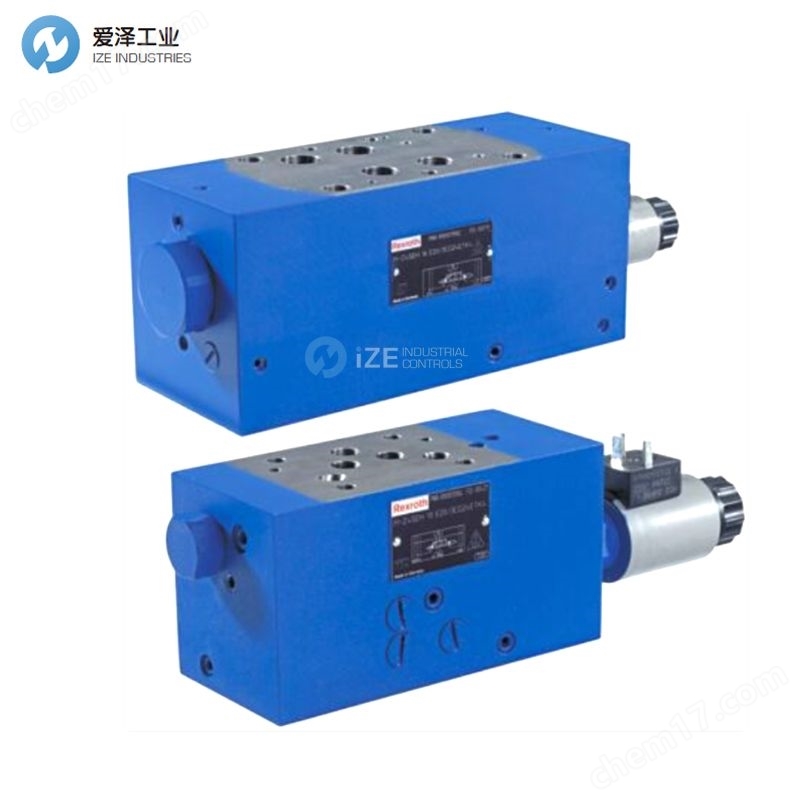

REXROTH閥SEH系列M-Z4SEH16E2X/3CG24PTK4/N規格描述
